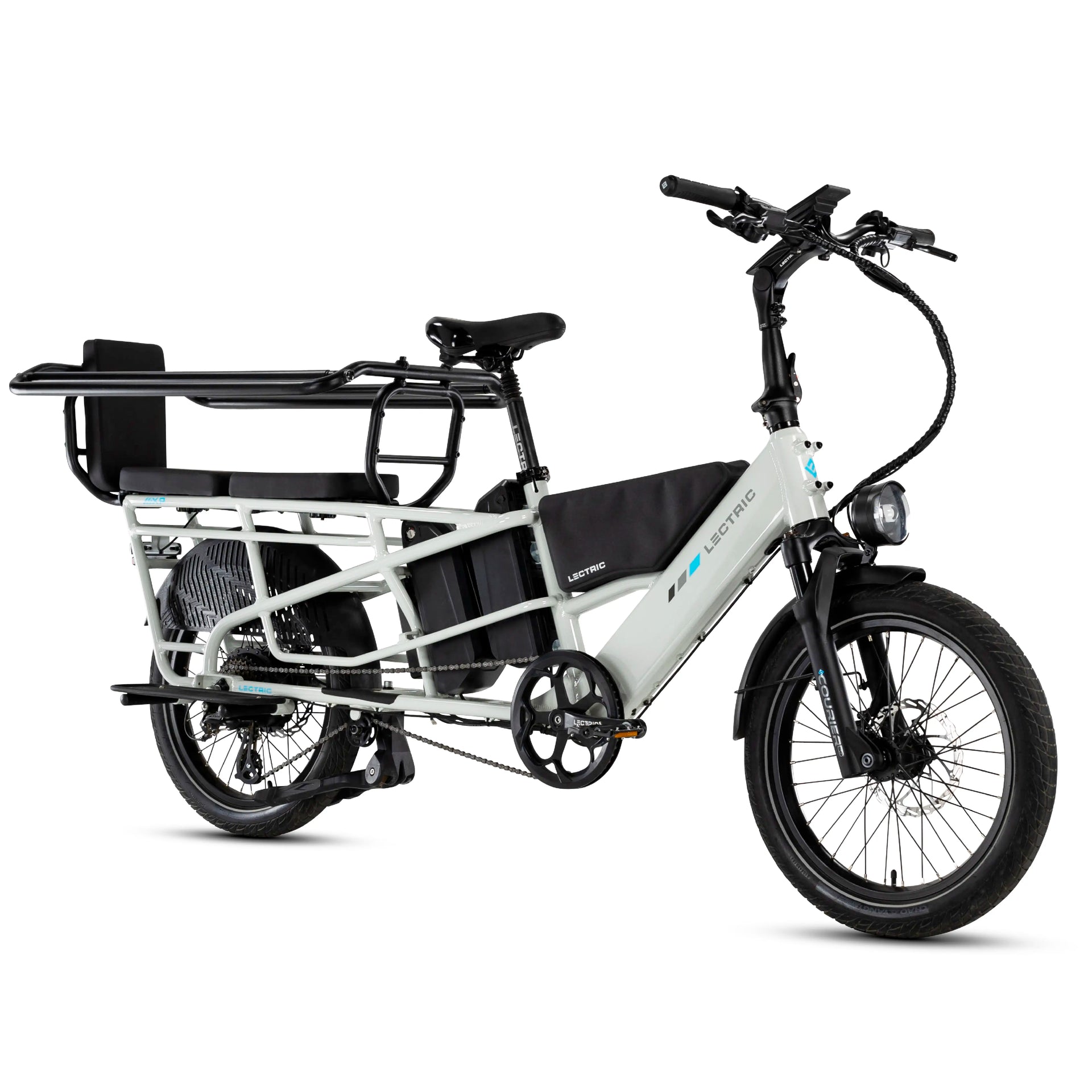

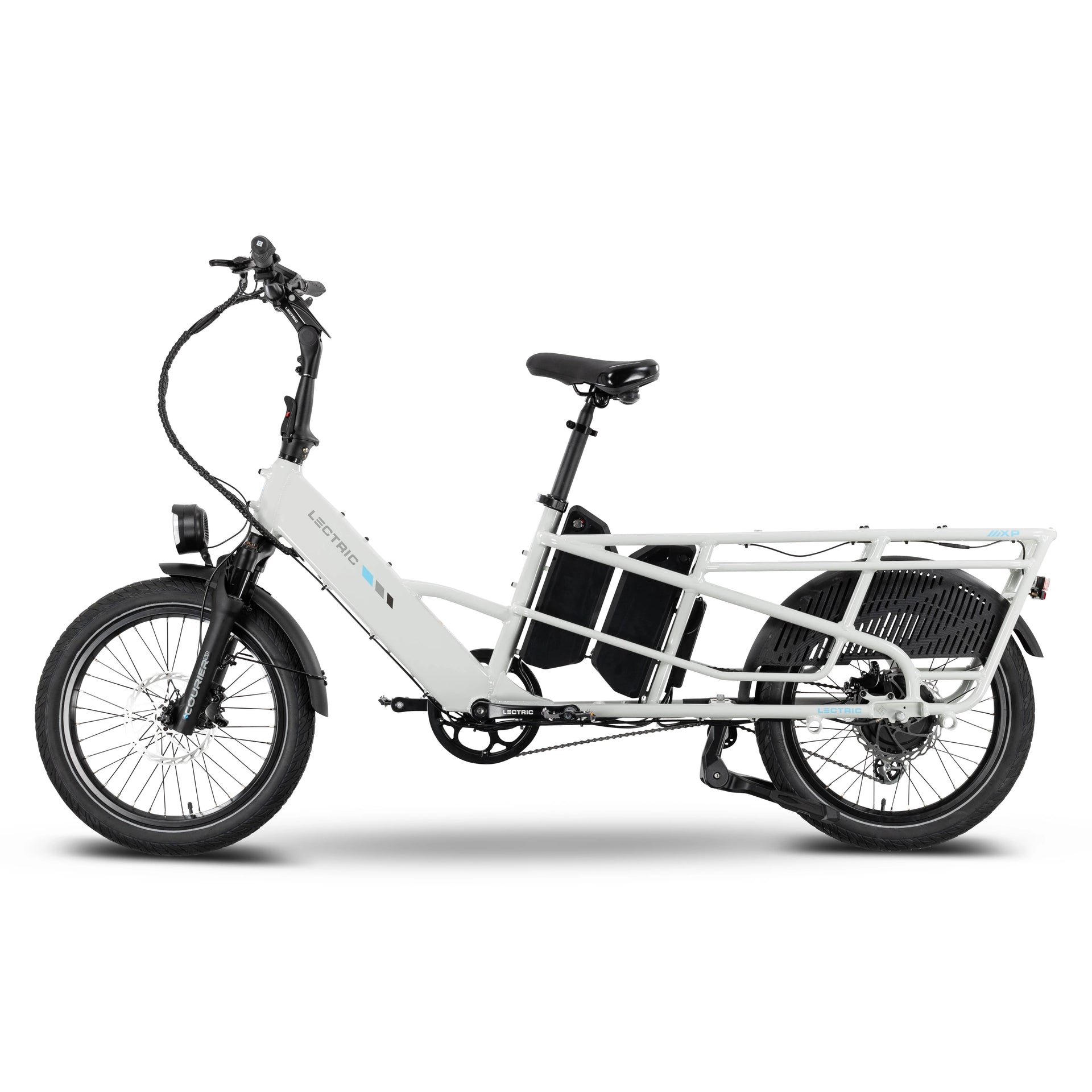

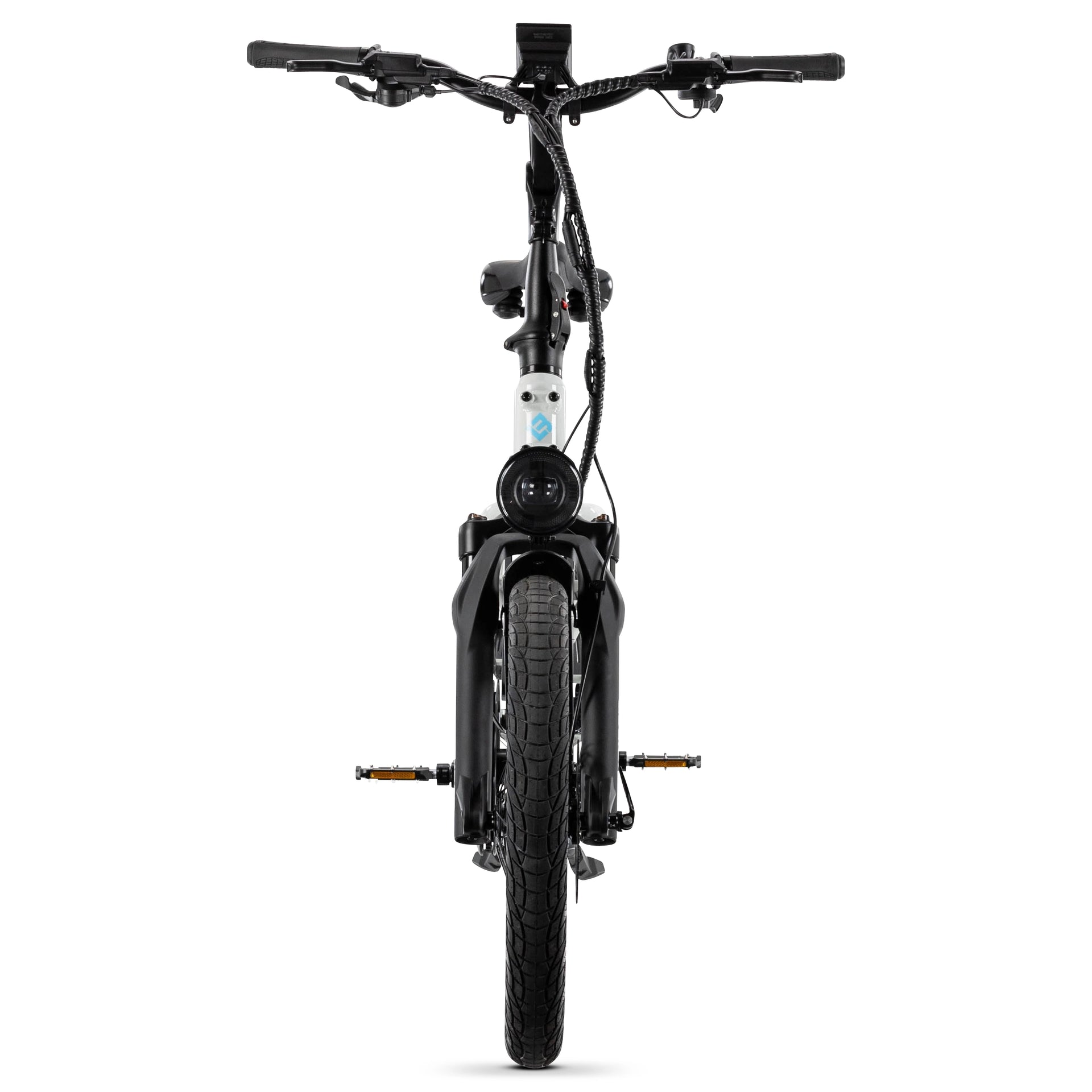

Lectric XPedition 2.0 Cargo E-Bike

Pedal-Assist & Throttle

• Five levels of pedal-assist and a half-twist throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.*

Cargo & Tires

• Rear Rack: A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. The rear rack also has 2 bulit-in mounting windows to easily install childrens seats & more.
• Tires: Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost.

Suspension Front Fork

• The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. Independent pre-load adjustments in each fork leg allow you to tailor each ride to your preference based on payload capacity and weight distribution.

Motor & Battery

• Motor: A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before.
• Motor Controller: 24 amp externally mounted controller is IP-65 rated and potted for weatherproofing and heat management.
• Battery: Available with a Single 48v 14 ah Battery for up 60 miles, Dual 48V, 13ah Batteries for up to 120 miles and Duel Long-Range 48v 17.5ah lithium-ion batteries to power your ride for up to 170 miles.

Drivetrain & Brakes

• 11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
• Brakes: Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick) offers peace of mind in wet or dry conditions.

Technology

• PAS Torque Sensor: A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.

Practical Features

• Weight: Total bike weight 65lbs without batteries installed. Each XPedition battery weighs 9lbs.
• Charging: An external battery allows riders to charge the eBike without removing the battery. An additional battery can be added for increased range. Meanwhile, interchangeable spare batteries can be removed and installed in seconds, doubling your range.
• Folding Capabilities: A foldable handlebar stem, and adjustable seat height allows the XPedition to slide into compact spaces.

Display, Comfort & Safety

• A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
• Saddle & Grips: New custom designed saddle and softer durometer ergonomic lock-on grips compliment a sportier look while adding comfort so you can ride longer.

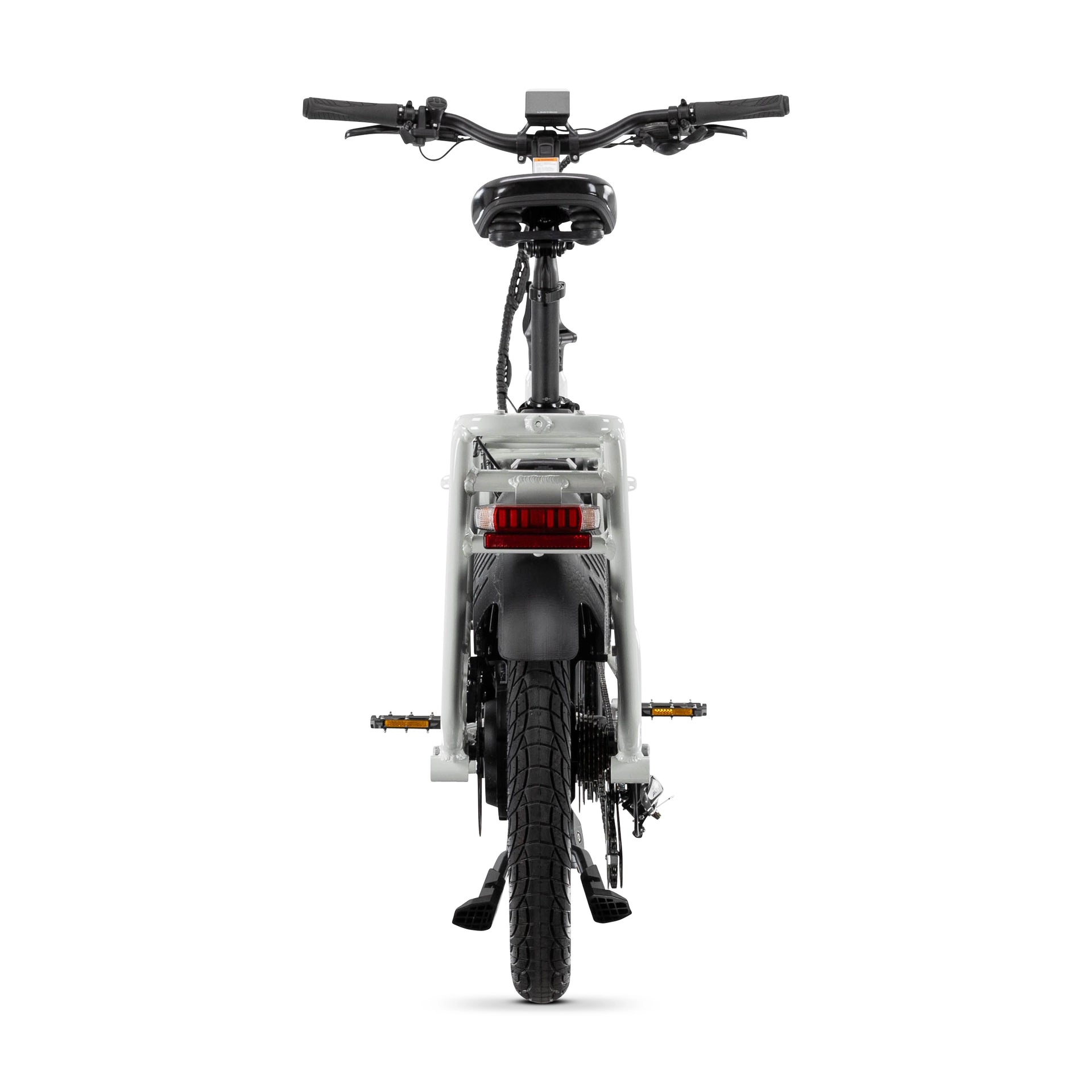

• Safety Lights: An integrated safety system, featuring a headlamp and rear light combination powered by the internal battery allows you to be seen at any time of day.

Additional Features

• Smart-Draining Technology: A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 150 miles, respectively.** The bike will arrive with a terminal cover on the second battery mount but can be quickly removed to add a second battery at any time.
• Folding Dual-Leg Kickstand: A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading***. Pushing forward allows you to start riding without having to manually put the kickstand up with precious cargo.
• Dual Seat Post: An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights while maintaining comfort and stability.
• PAS Torque Sensor: A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
• Hidden Cable Routing: A hollow top tube frame houses the main cables for a premium experience at no extra cost. Cables that may need to be serviced overtime are easily accessible and mounted to the underside of the frame.
• Frame: The XPedition 2.0 frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum features multiple mounting points throughout the eBike for various tool-free accessory combinations!
• DIN Tested & Rated: A US-based bicycle testing lab put the XPedition through the rigorous DIN standard testing process to prove the frame and fork can handle a 450lb maximum payload ride after ride. The XPedition is rated to DIN 79010:2020-02.5.9.5.2.

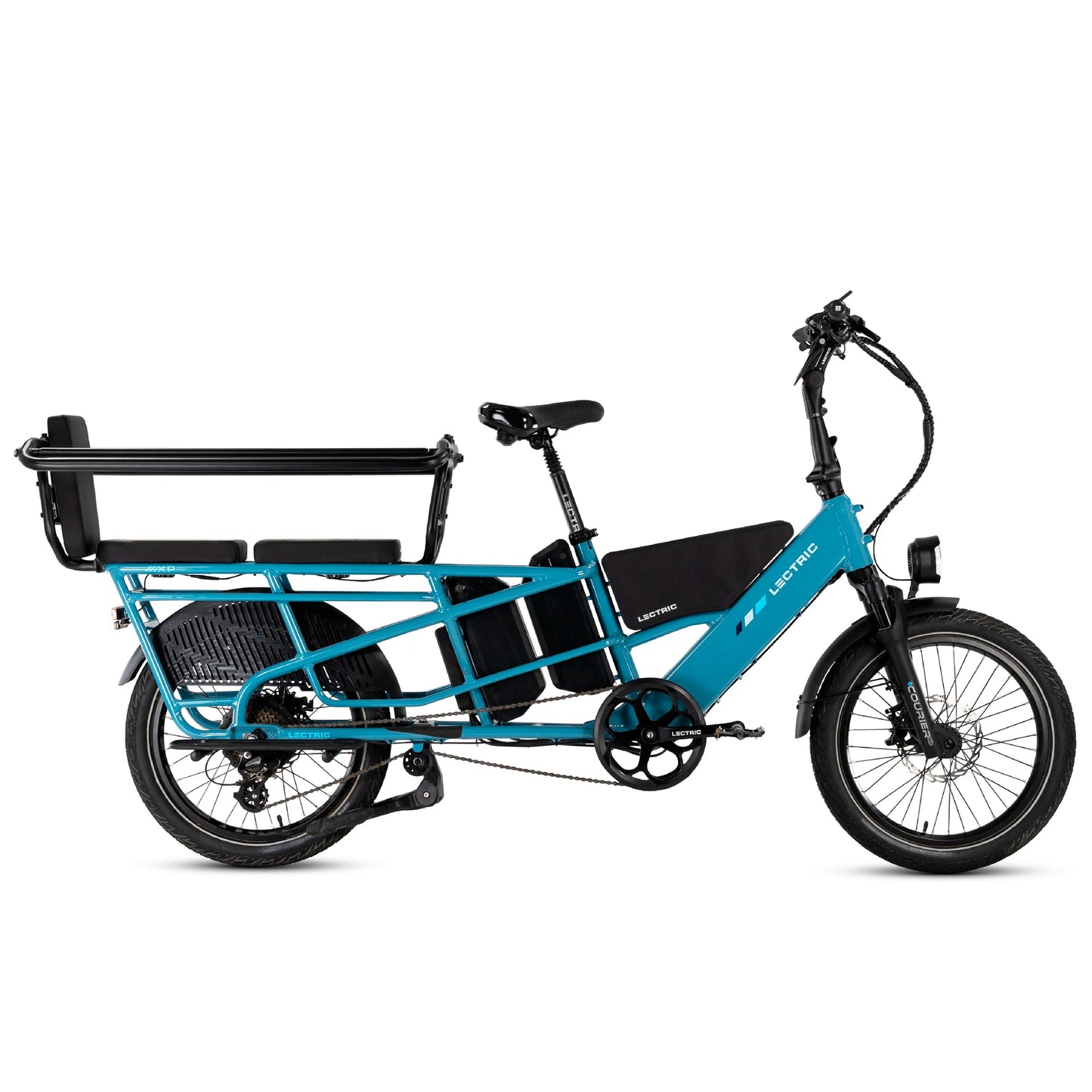

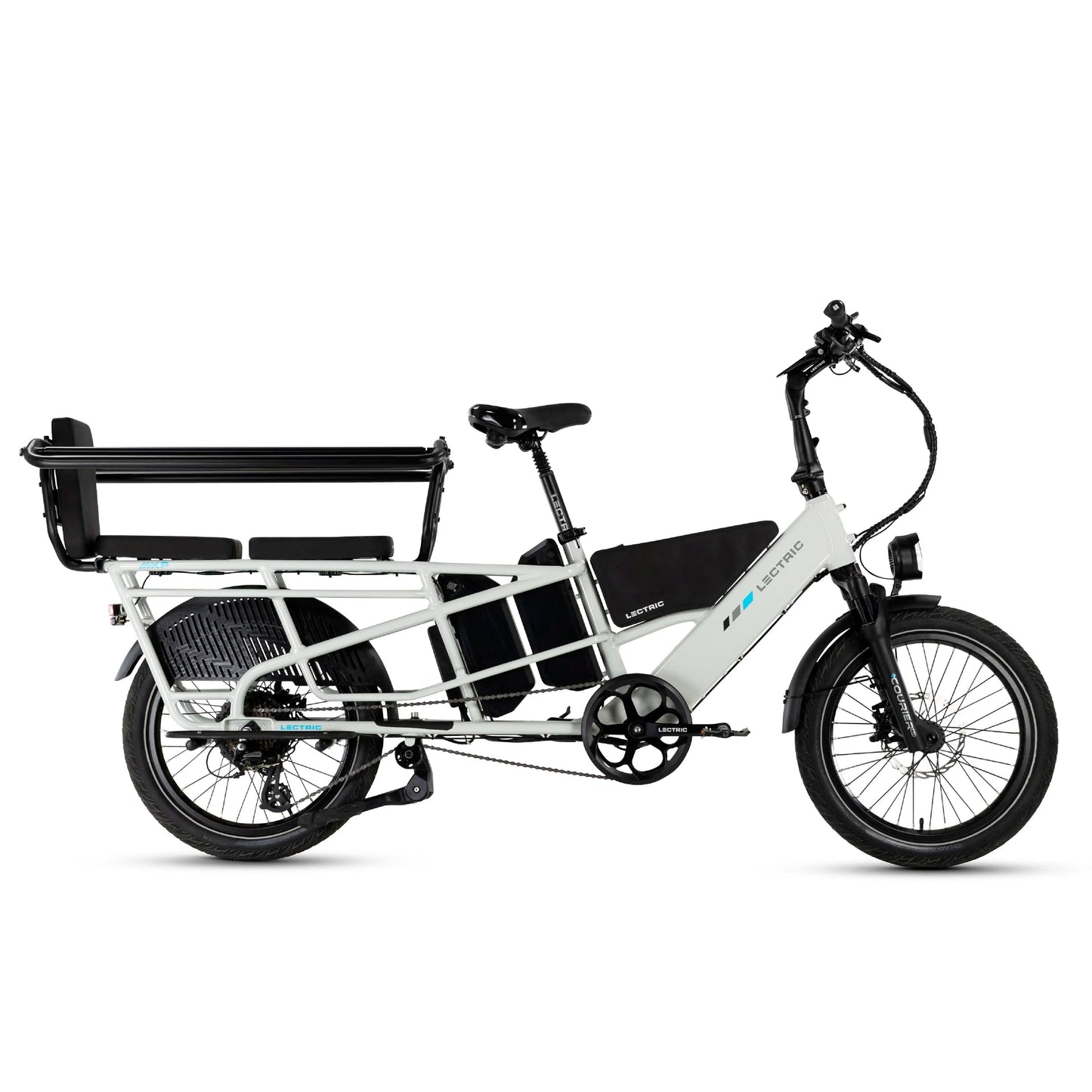

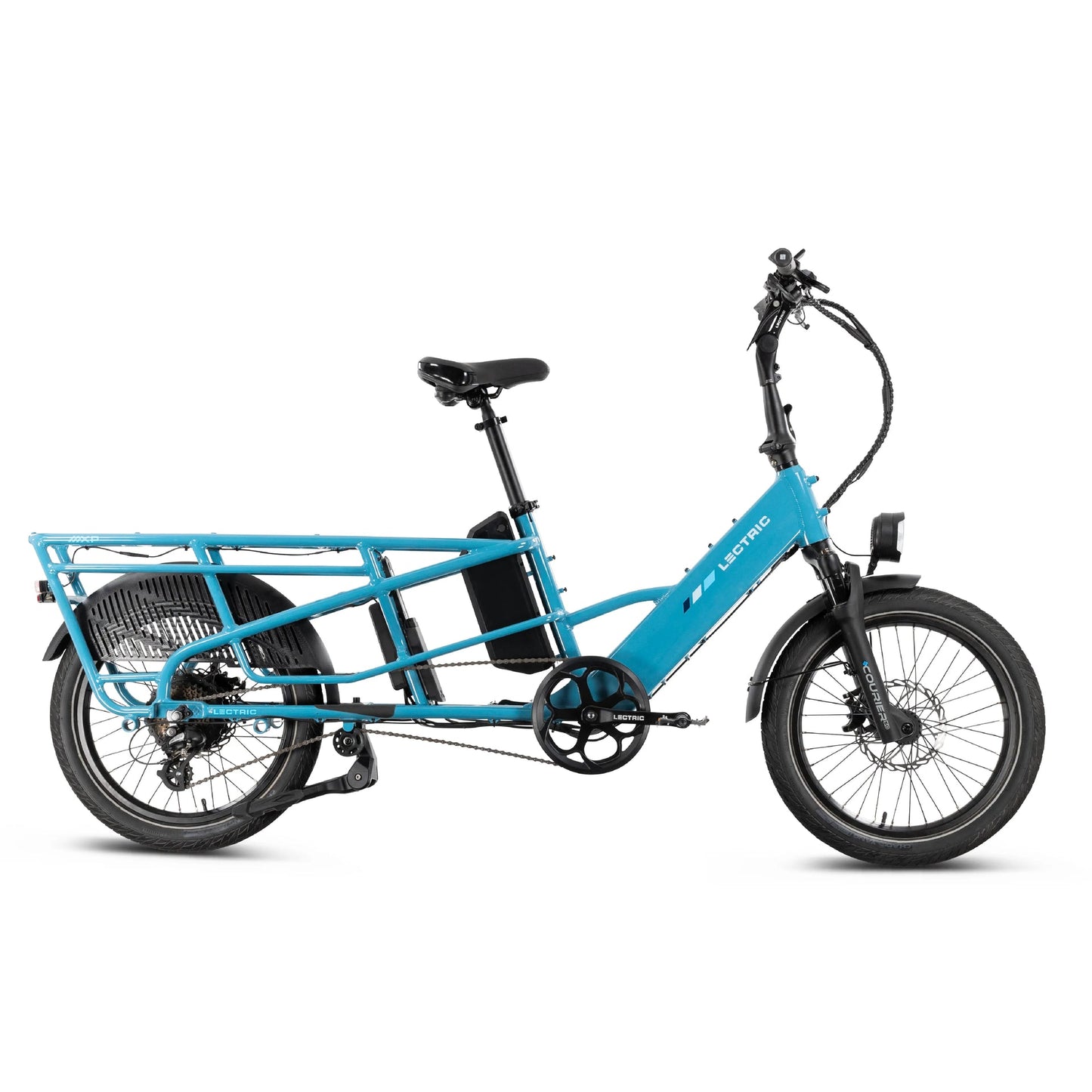

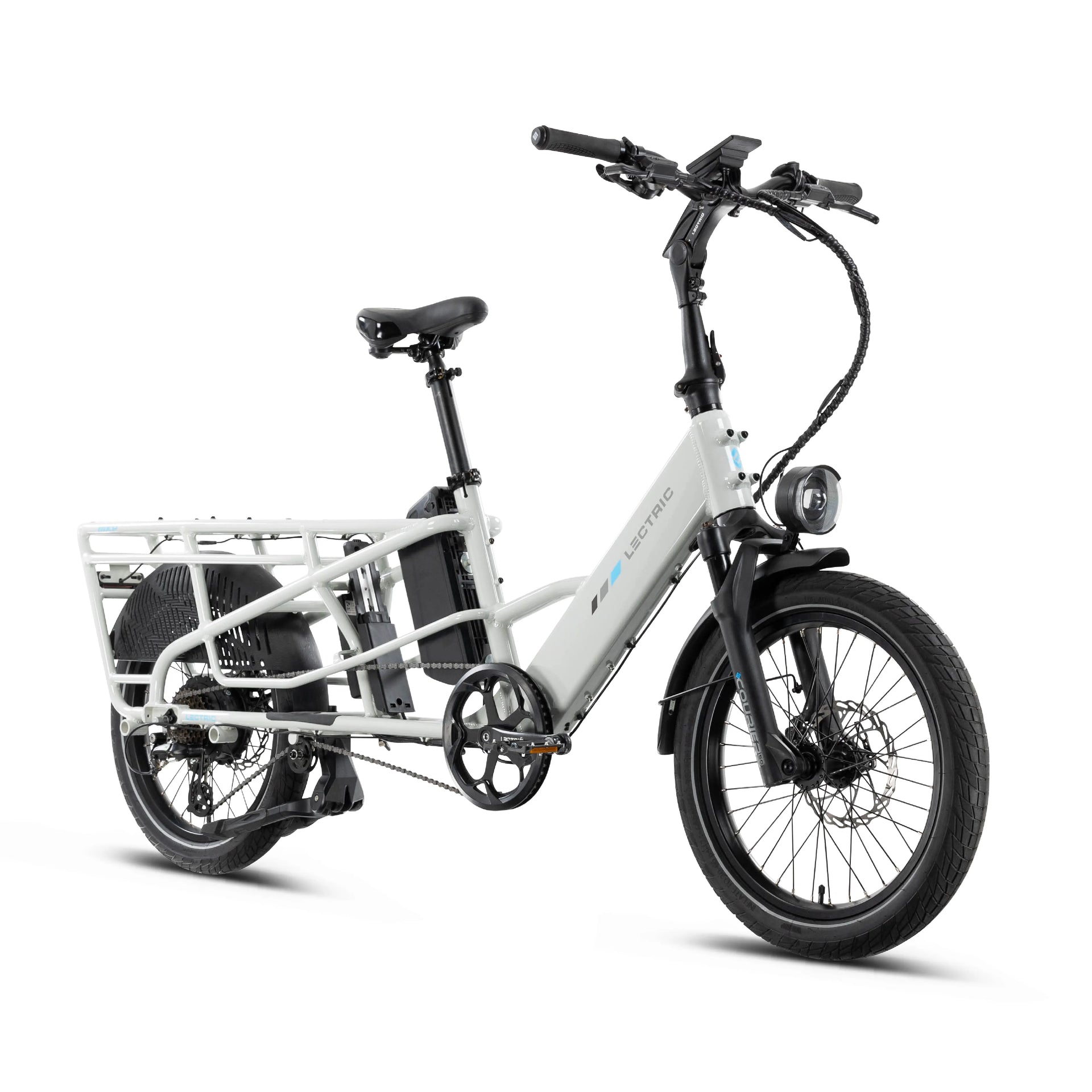

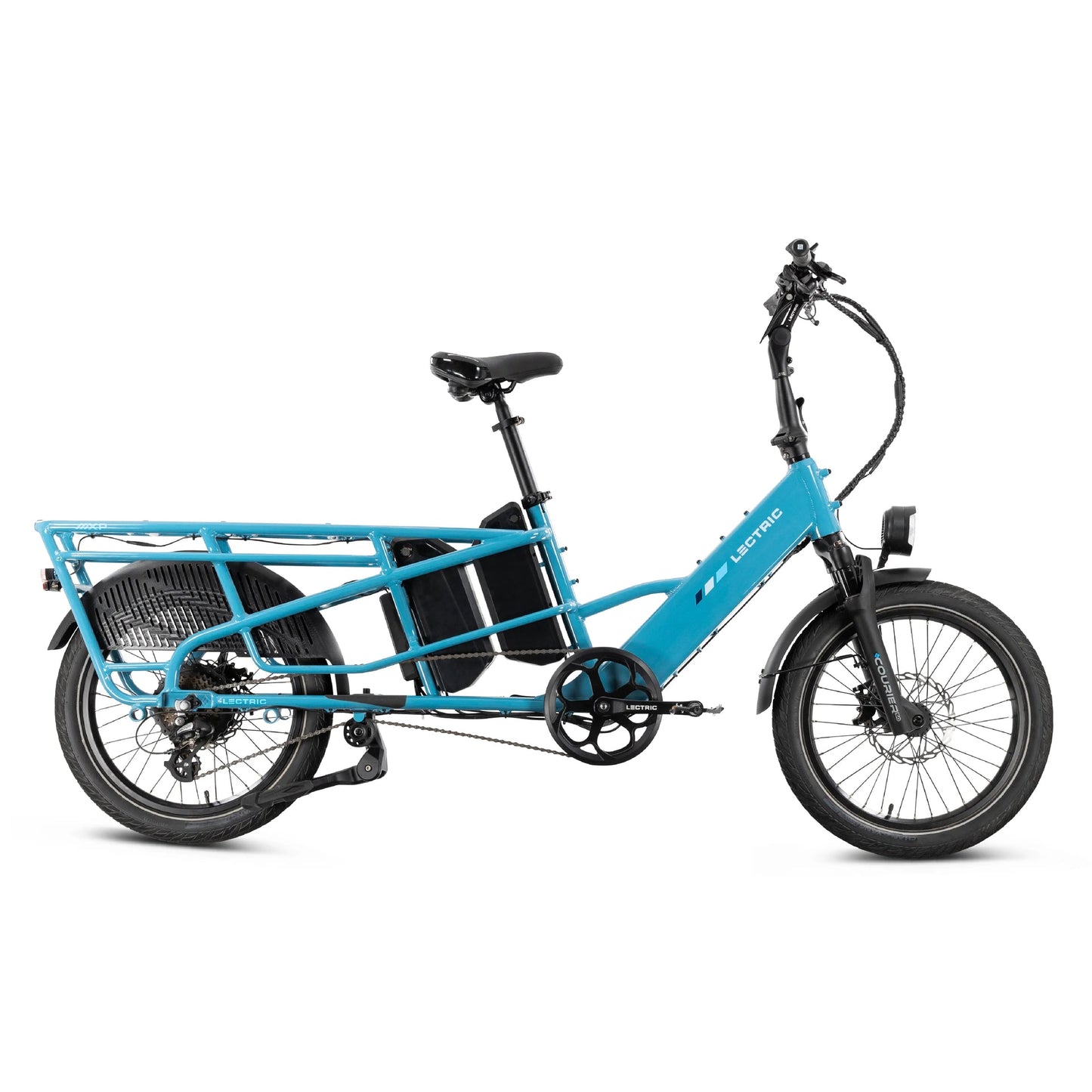

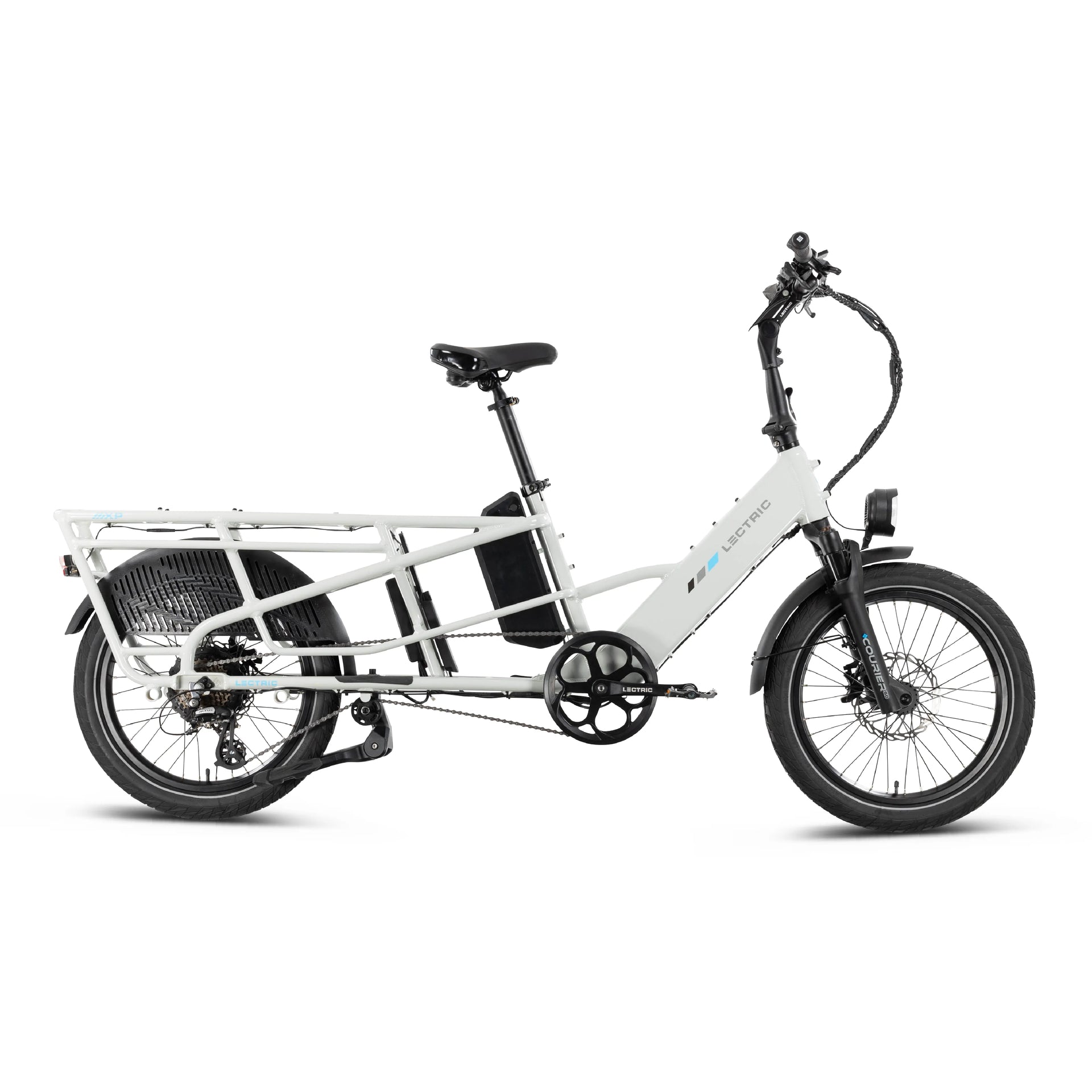

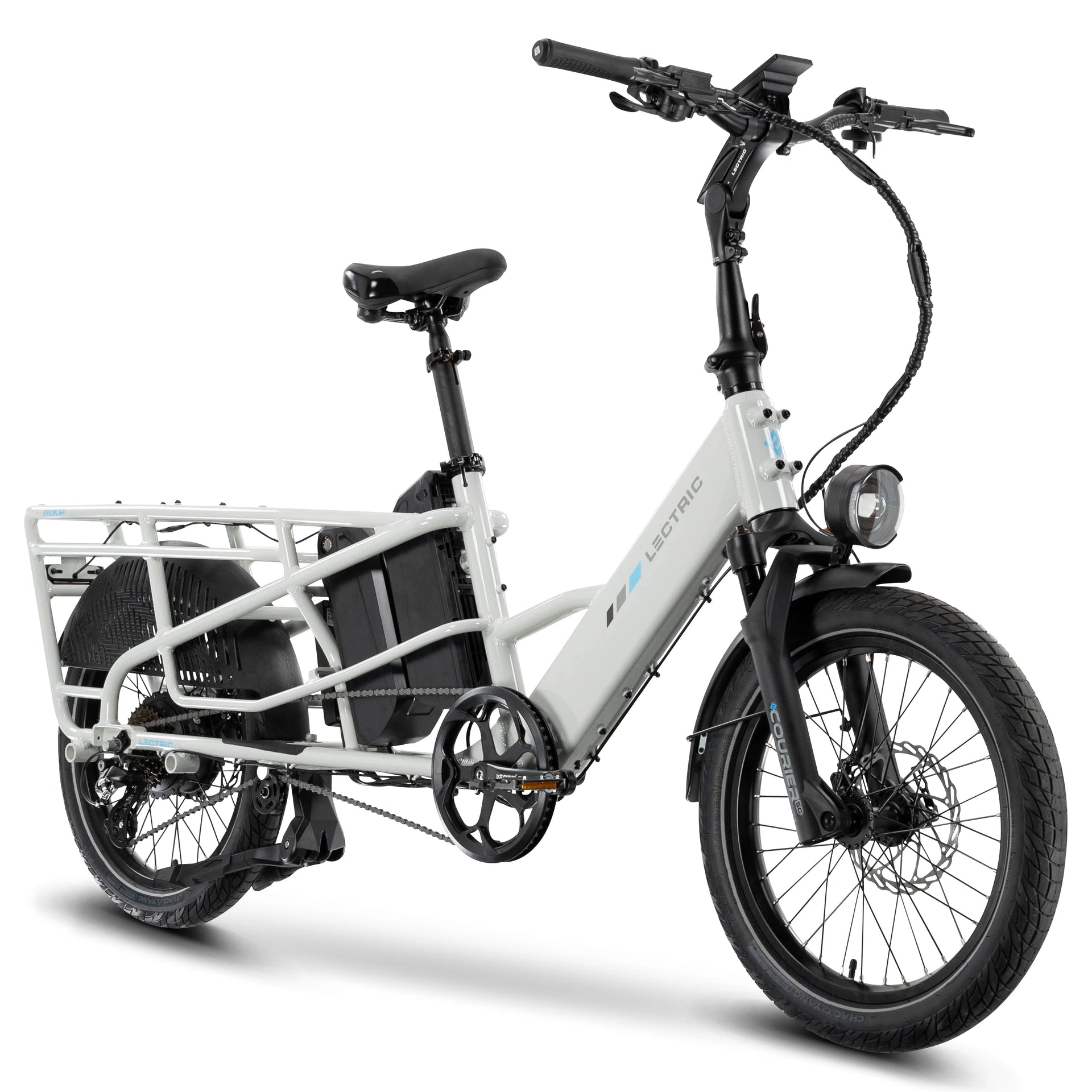

• Color: Stratus White and Raindrop Blue
