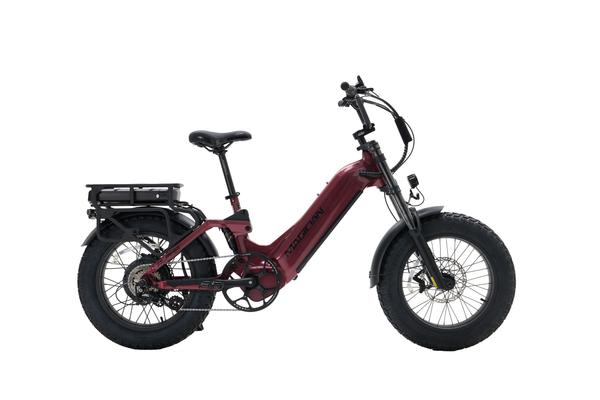

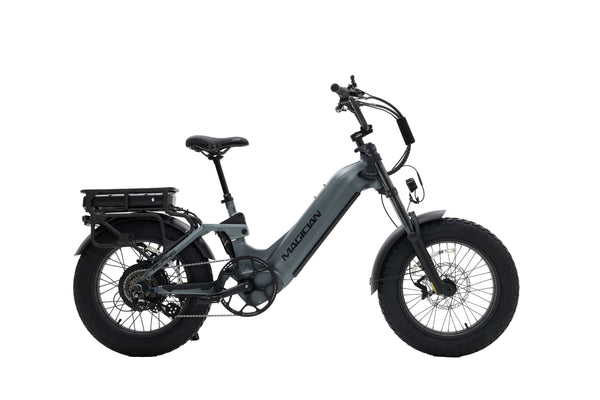

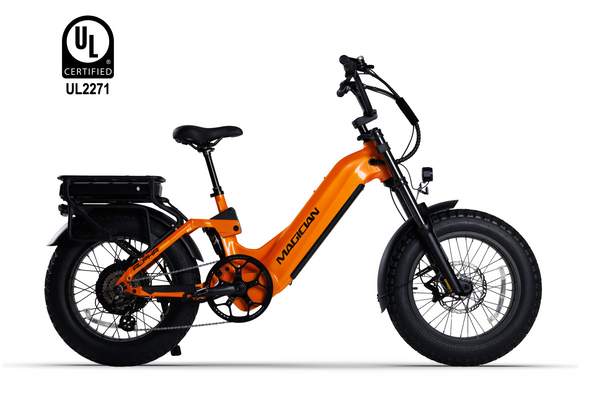

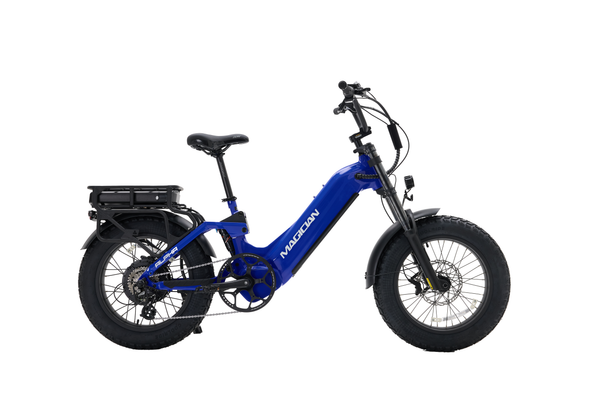

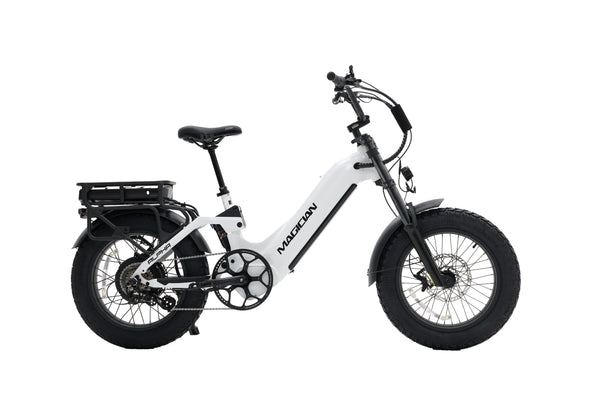

Magician Alpha Mini

Alpha Mini is Built for hardcore riders, Full suspension Frame, High-power electric system are Equipped with Bafang 72v5000w beastly motor and The front 72v20ah and Rear 72v10ah military-grade battery systems, Delivering 180NM peak explosive torque and up to 80 miles (PAS 1)  unstoppable range. Use BAFANG app to fine-tune motor parameters and personalize your ride from your smartphone ,fully programmable display to create a Class 1, Class 2, Class 3 or Unlimited Mode. "Lets Unleash the Wild Power Together " --Magician Ebikes

This product is intended for off-road or private property use only. Users are responsible for complying with local laws and regulations.

TECHNICAL SPECIFICATIONS

Motor

Customized all new Bafang 72v 3000w 20 inch Rear-hub motor, peak 5000w, peak torque 180 N.M-CANBUS SYSTEM

Battery sizes

Total capacity of 72v 30ah 2160wh: 72v 20ah 1440wh (Front battery) + 72v 10ah 720wh-UL2271 certified,CANBUS SYSTEM

Controller

Bafang 72v 60a 18 mosfets high performance controller-CANBUS SYSTEM

Display

Bafang DP C010 center-mounted colour LCD diaplay-CANBUS SYSTEM

Lights

12v 9w 180LUX

Bottom Bracket

Bafang Torque sensor, 120mm

Assist Type

Cadence/Torque optional

Assist Levels

0-5

Throttle

Right-hand twist throttle with on/off button

Shifter Rear

Shimano Altus 7 speed, thumb shifter

Cassette

11-34T Shimano cassette

Chain

KMC Z8.3 EPT 118 links

Crank set

Dual chain guard 58T/152mm arms

Fork

Exsho Dual crown suspension hydraulic fork, 100mm travel, 38mm reinforced inner tube, thru axle, lockout and preload

Rear suspension

DNM 38RC air coil shock, 190*51mm

Frame

6061 Full suspension aluminum

Front hub

135mm thru axle

Front axle

15mm thru-axle

Rims

Thickened double-layer aluminum alloy, rear 36H*10G, Front 36H*13G

Tire Sizes

Innova puncture resistant 20*4.0 tire, the custom tire is capable of withstanding high speeds of 80-100 km/h

Headset

Ginyea bearings headset

Brakes

Star Union quad-piston hydraulic w/203mm rotors
Integrated brake cutoffs

Handlebar

740mm wide BMX style, carbon steel material

Stem

50mm*22.2mm

Grips

Bolt-on MTB grips

Saddle

DDK-2261Q wide padded saddle

Regular Seat post

30.9*300mm

Seat post clamp

38.1mm quick release

Weight

Total weight of bike with both batteries = 136LBS / Total weight of bike without batteries = 103LBS

Payload

Bike Maximum payload=450lbs

Top Speed

Max 50mph

Recommended riding height

5'-6'3''
