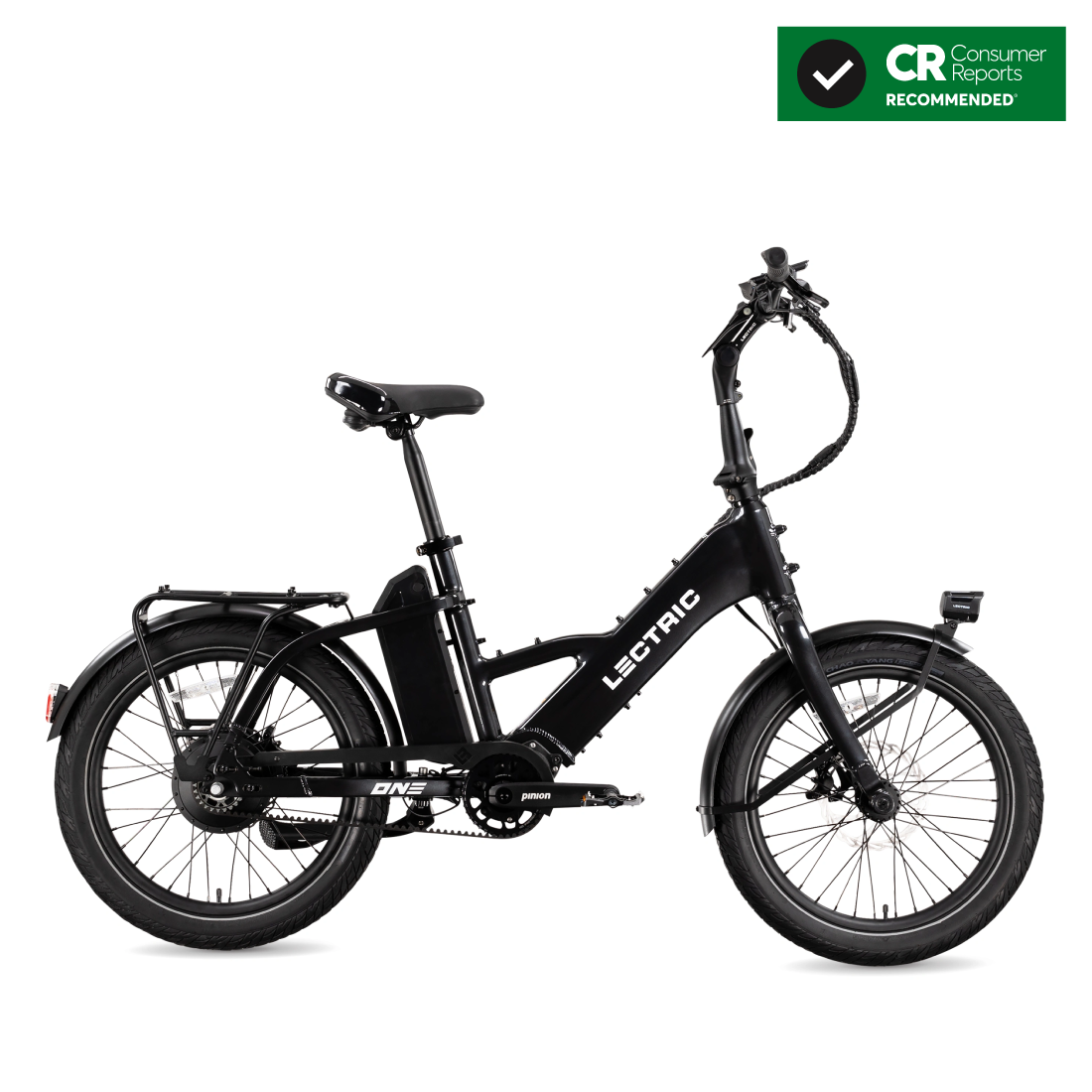

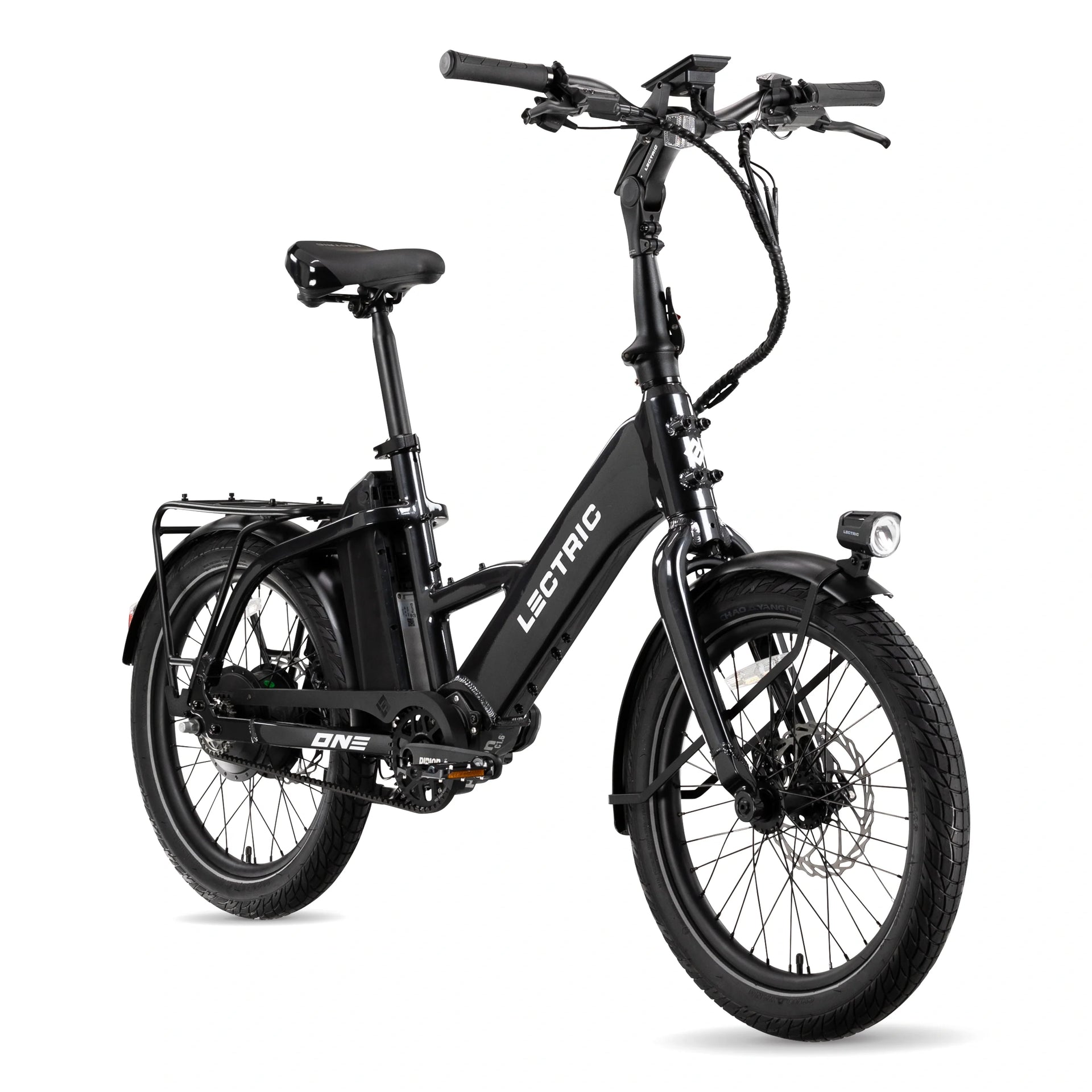

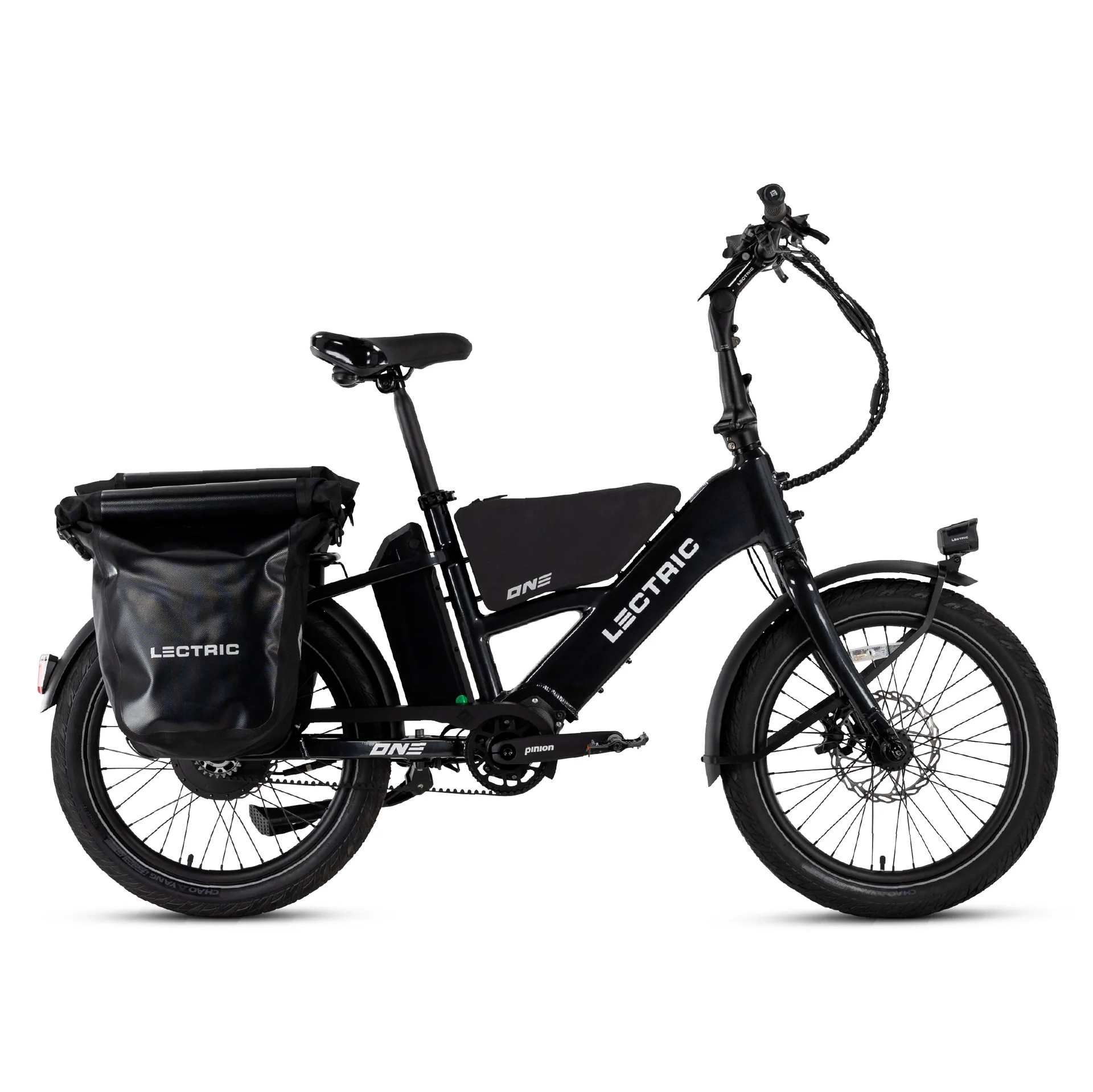

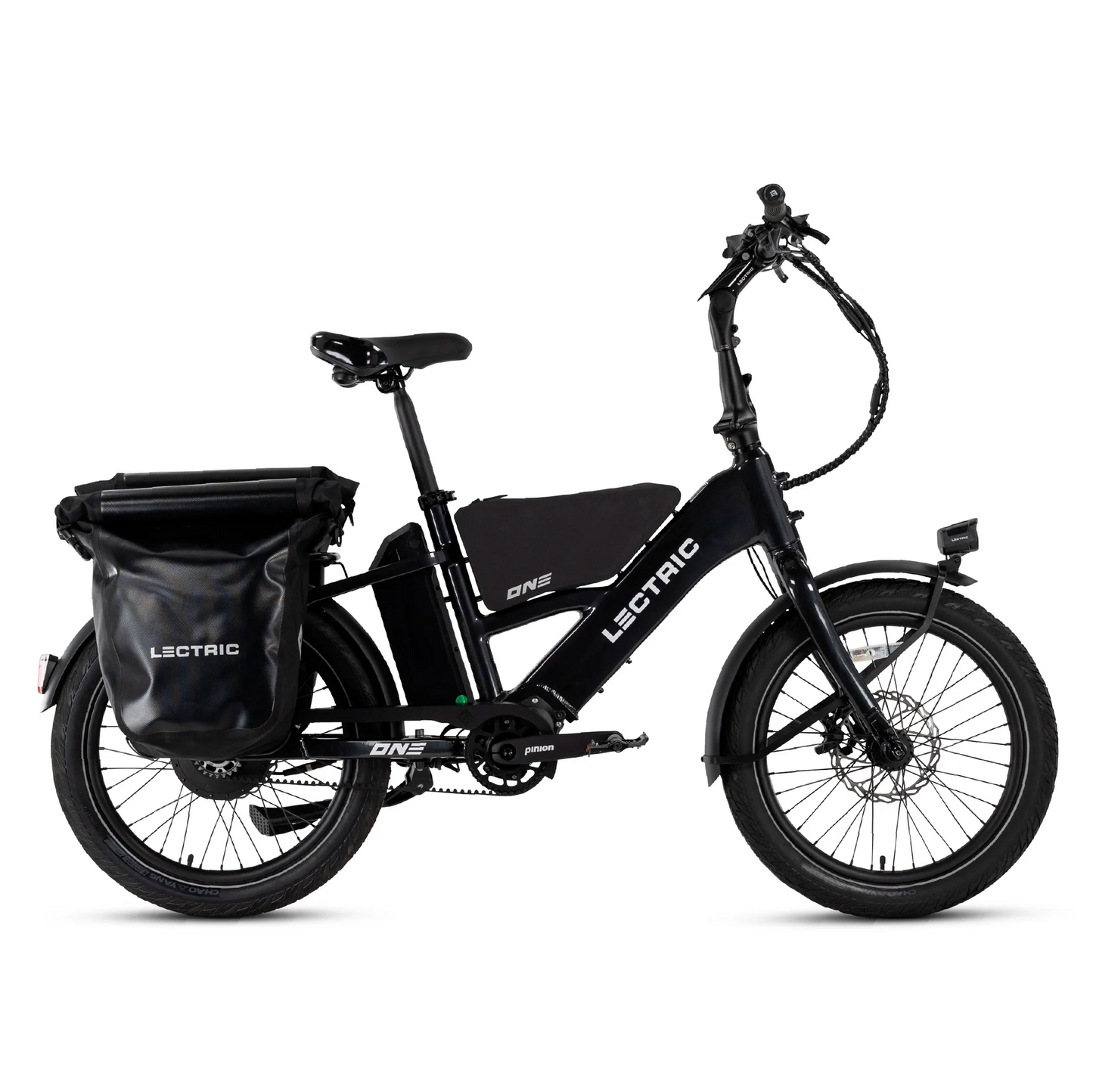

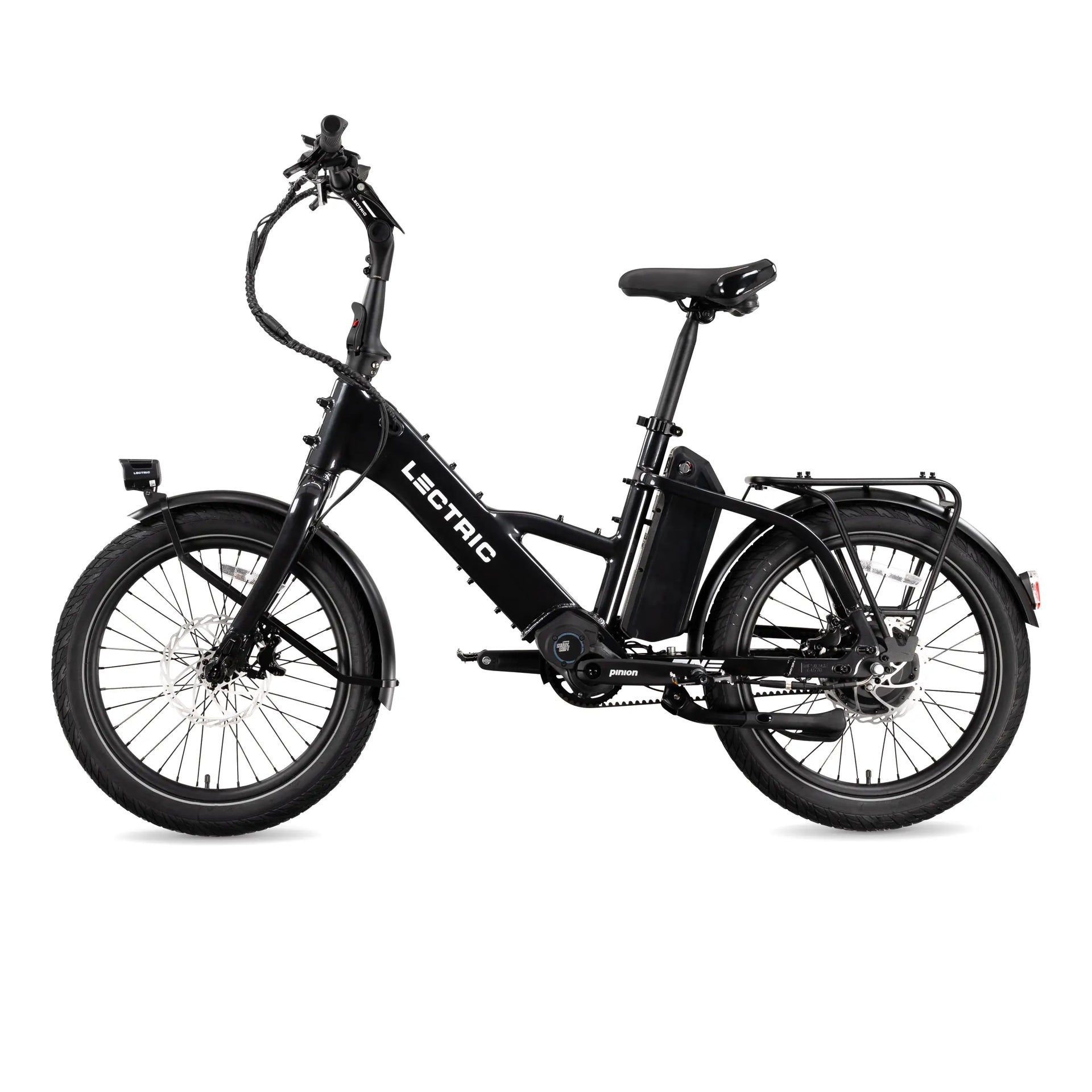

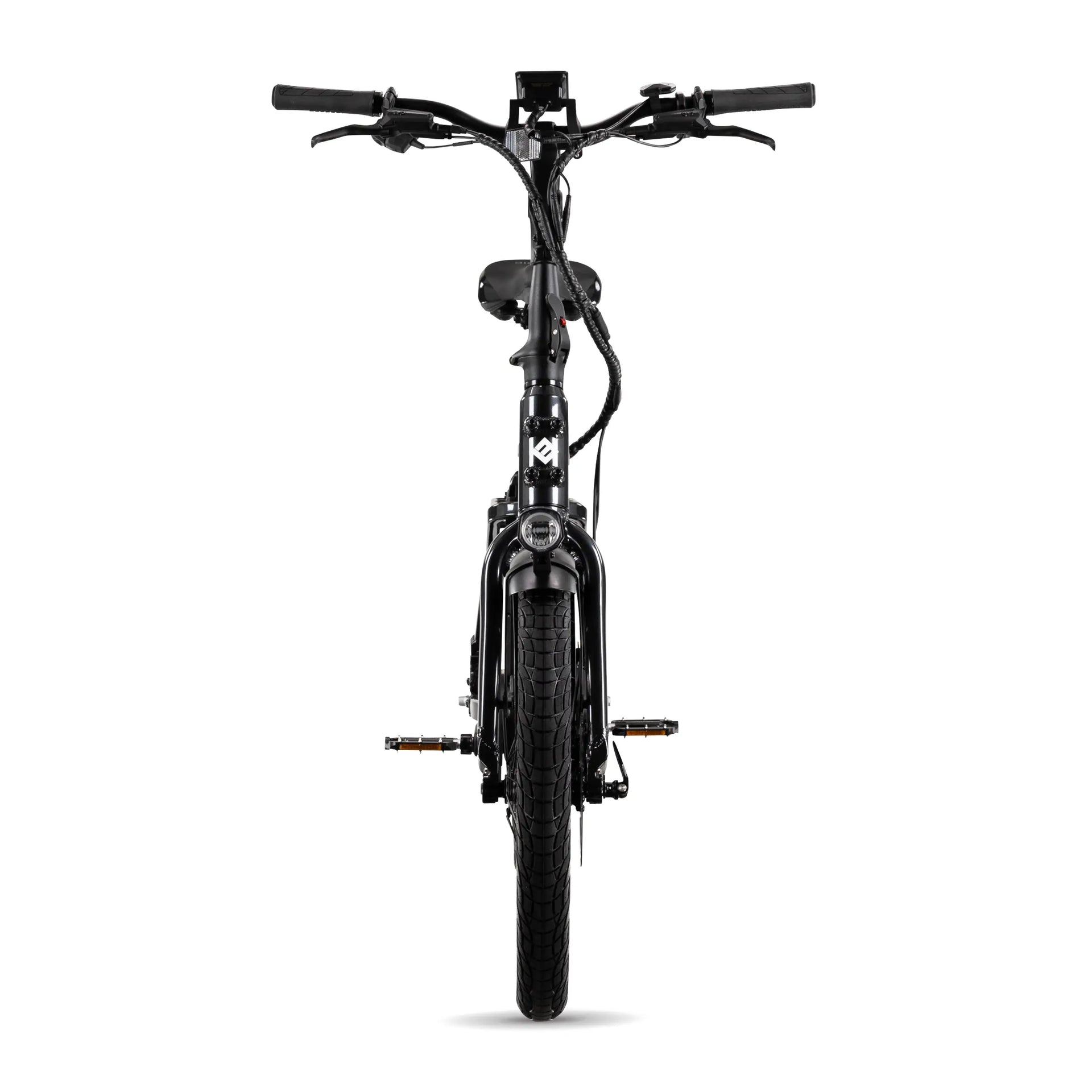

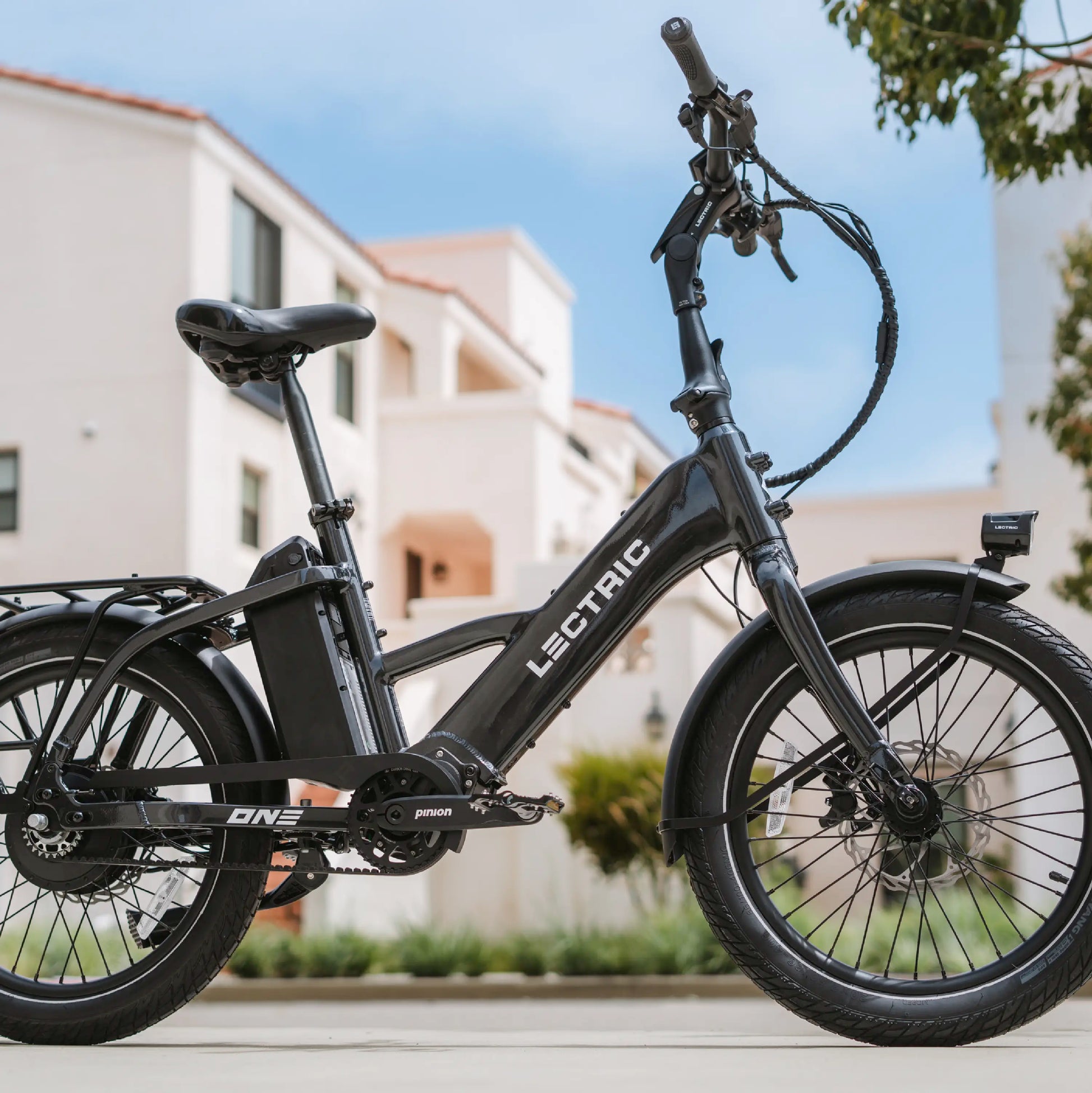

Lectric ONE Belt-Drive Commuter E-Bike

Pedal-Assist

Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.**

Thumb Throttle

An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.

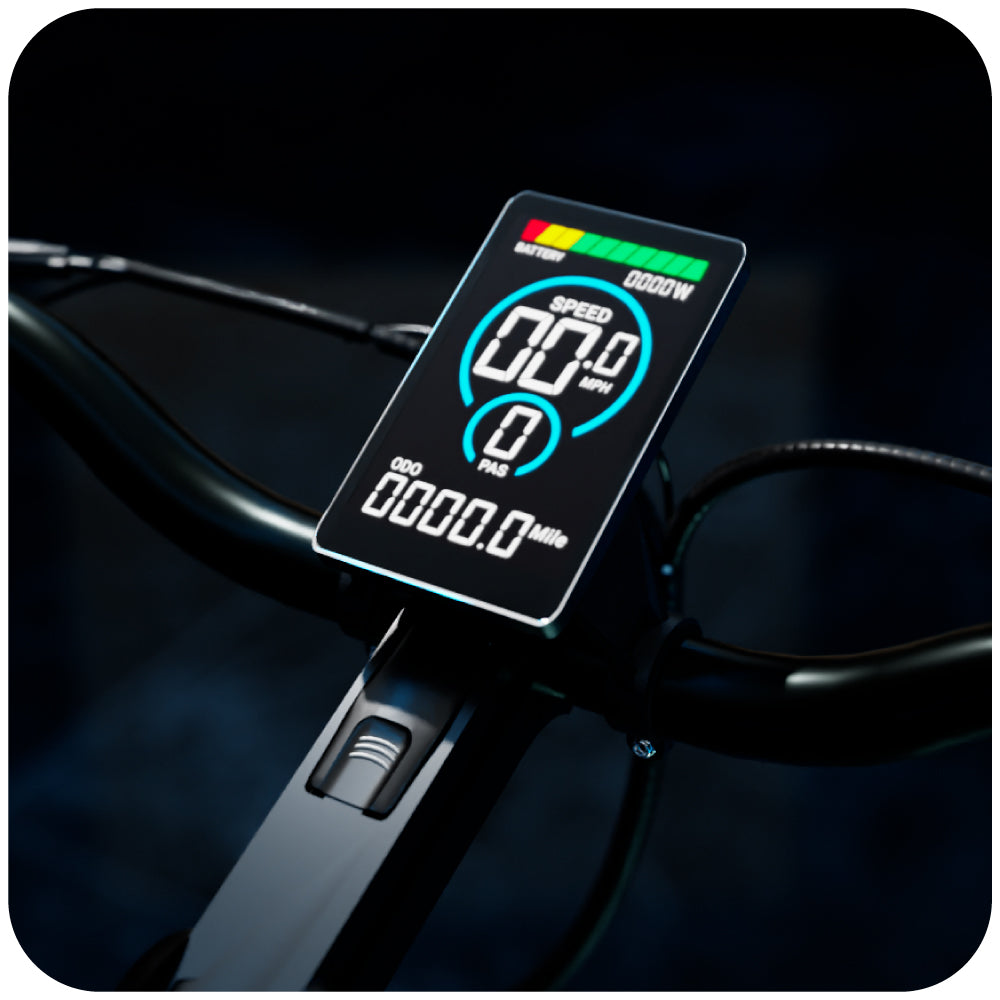

Color LCD Display

A backlit, heads-up color LCD display with a USB-A port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.

Motor Controller

24 amp controller is IP-65 rated and potted for weather proofing and thermal management.

Motor

A Sutto 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.

Battery

Available with a Long-Range 48V 14ah (672 Wh) lithium-ion battery certified to UL 2271 to power your ride for up to 60 miles, respectively.†‡ The Lectric ONE is also certified to UL 2849.

Bike Weight

Total bike weight is 48lbs with the 7lb battery removed.

City Tires

20x2.5'' city tires featuring a reflective strip are equipped with 3mm Hippo Skin with an Aramid Floc Breaker. Shark Skin Protection on the sidewall offers pinch flat protection and all-weather reliability. Slime is installed to prevent flat tires at no additional cost.

Front Fork

This rigid fork is fully aluminum and ultra lightweight, featuring a thru axle dropout.

Thru Axle

The front wheel features a Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.

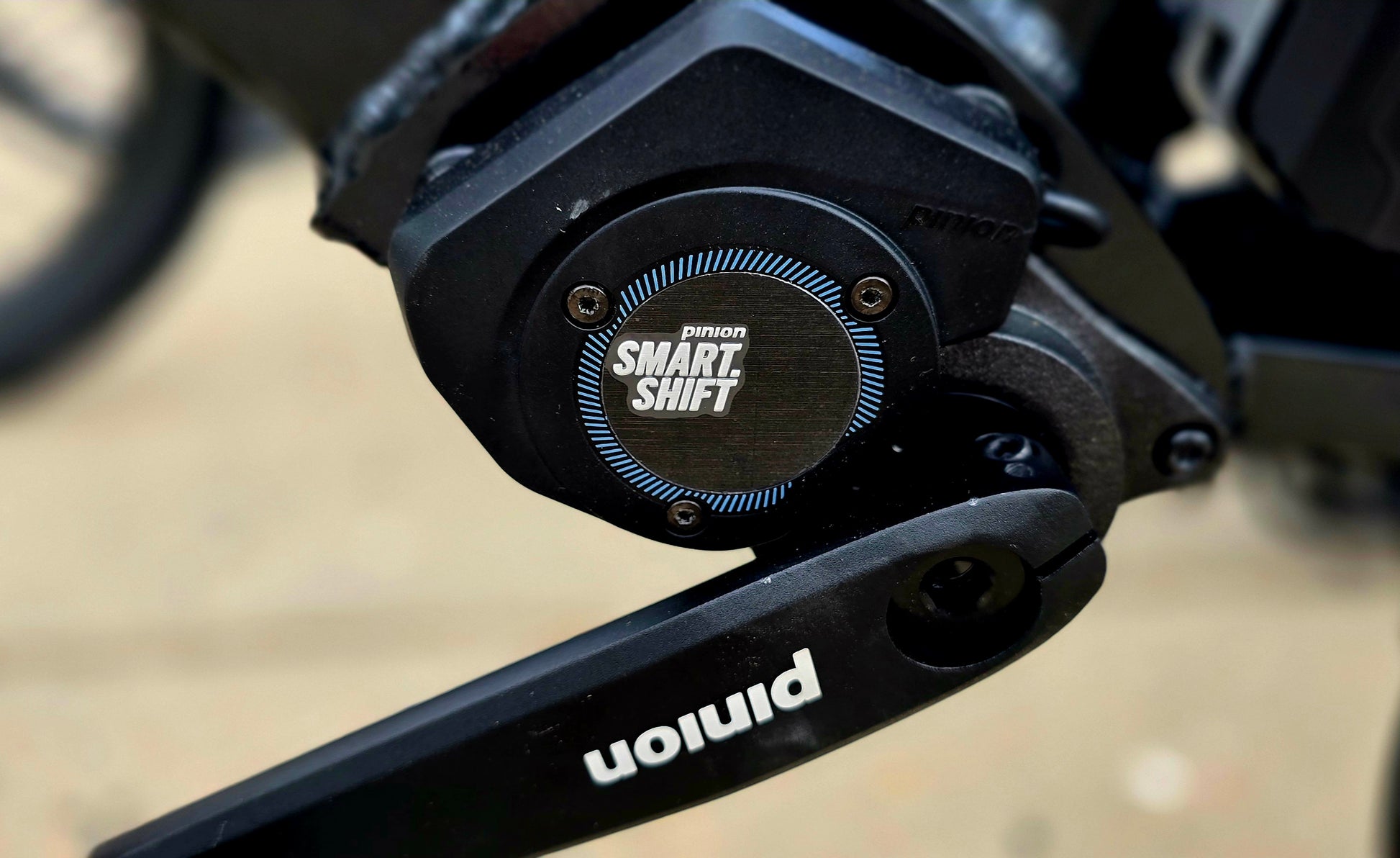

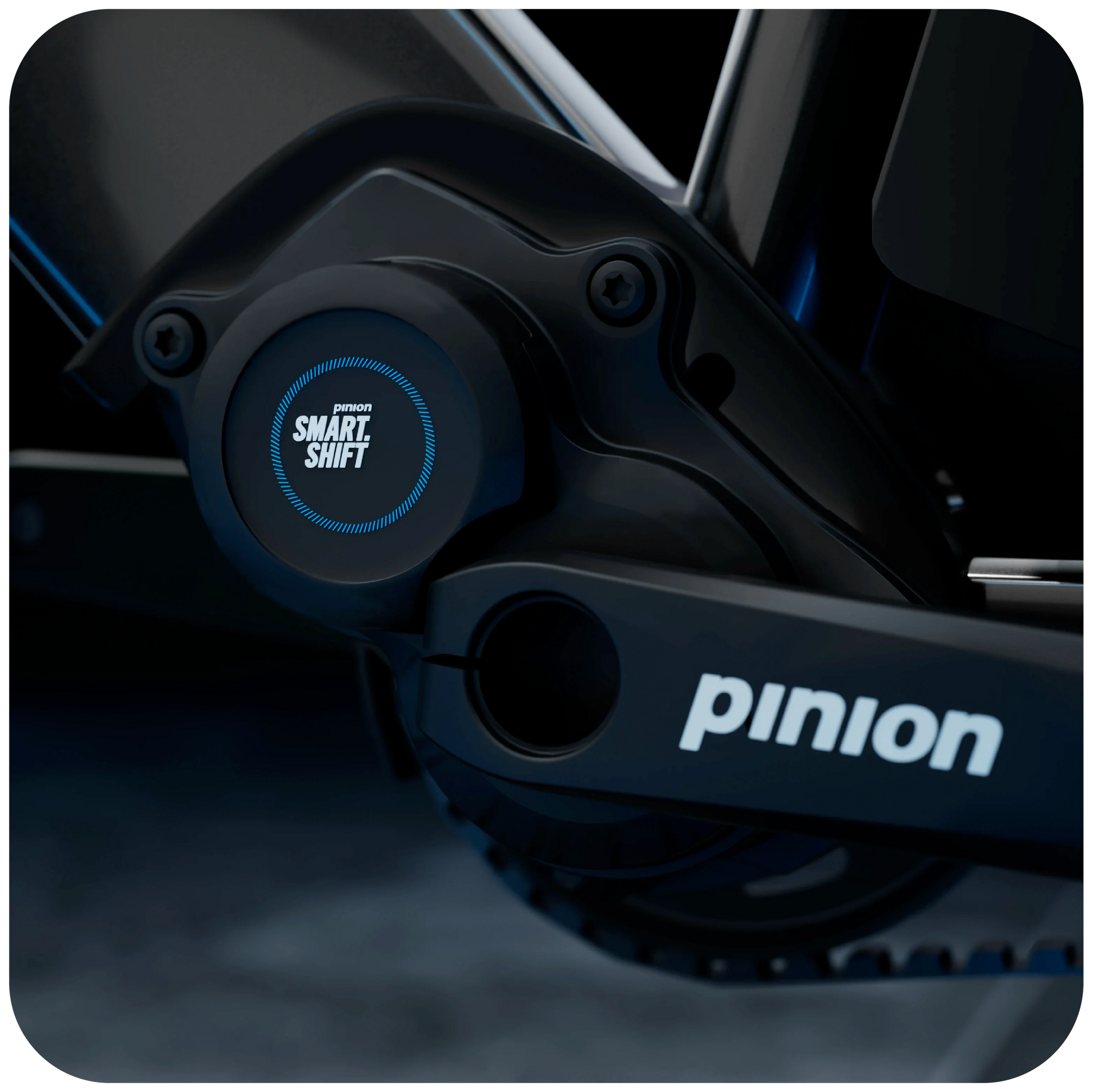

Pinion Gearbox

With the Pinion C1.6i six-speed sealed weatherproof gearbox, shifting is done at the touch of a button – quickly, ergonomically, and intuitively. The system shifts while riding, while stationary, and while under load.

Pinion Smart.Shift App

All gearbox functions are combined in the Pinion Smart.Shift App, which can be easily paired and customized to suit your preferences. A pre-select feature automatically sets the rider's gears, allowing effortless auto-shifts, while a convenient start-select feature lets riders dictate their starting gear ahead of time, allowing for split-second starts.

Cranks

Pinion aluminum cranks are 165mm in length.

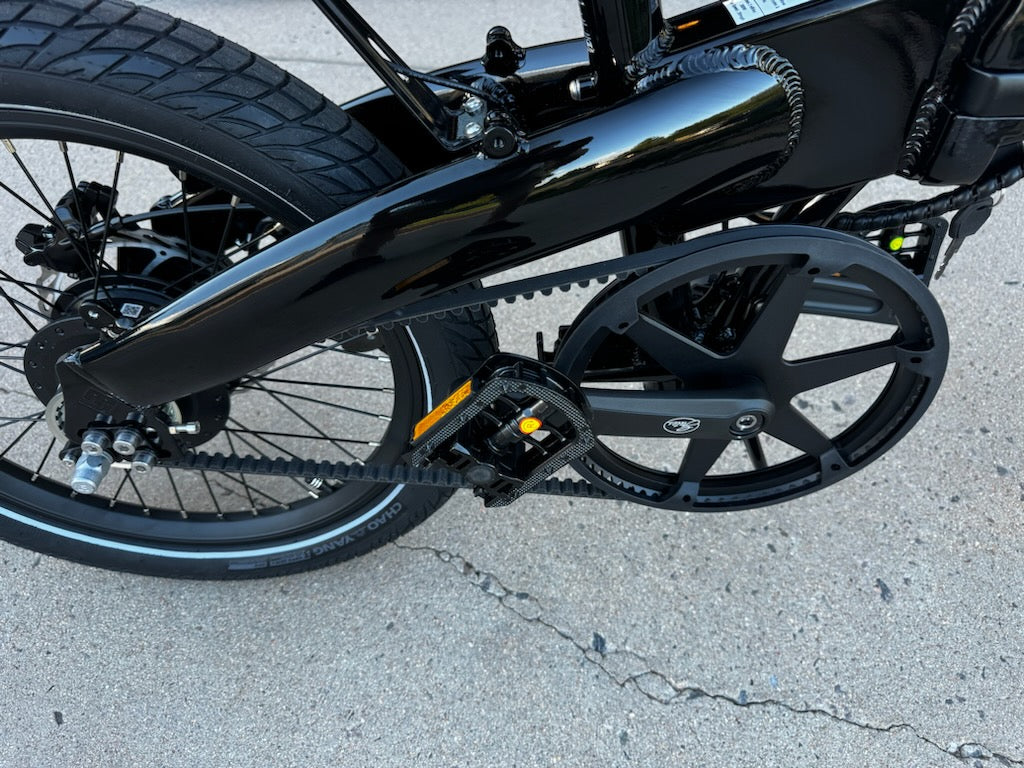

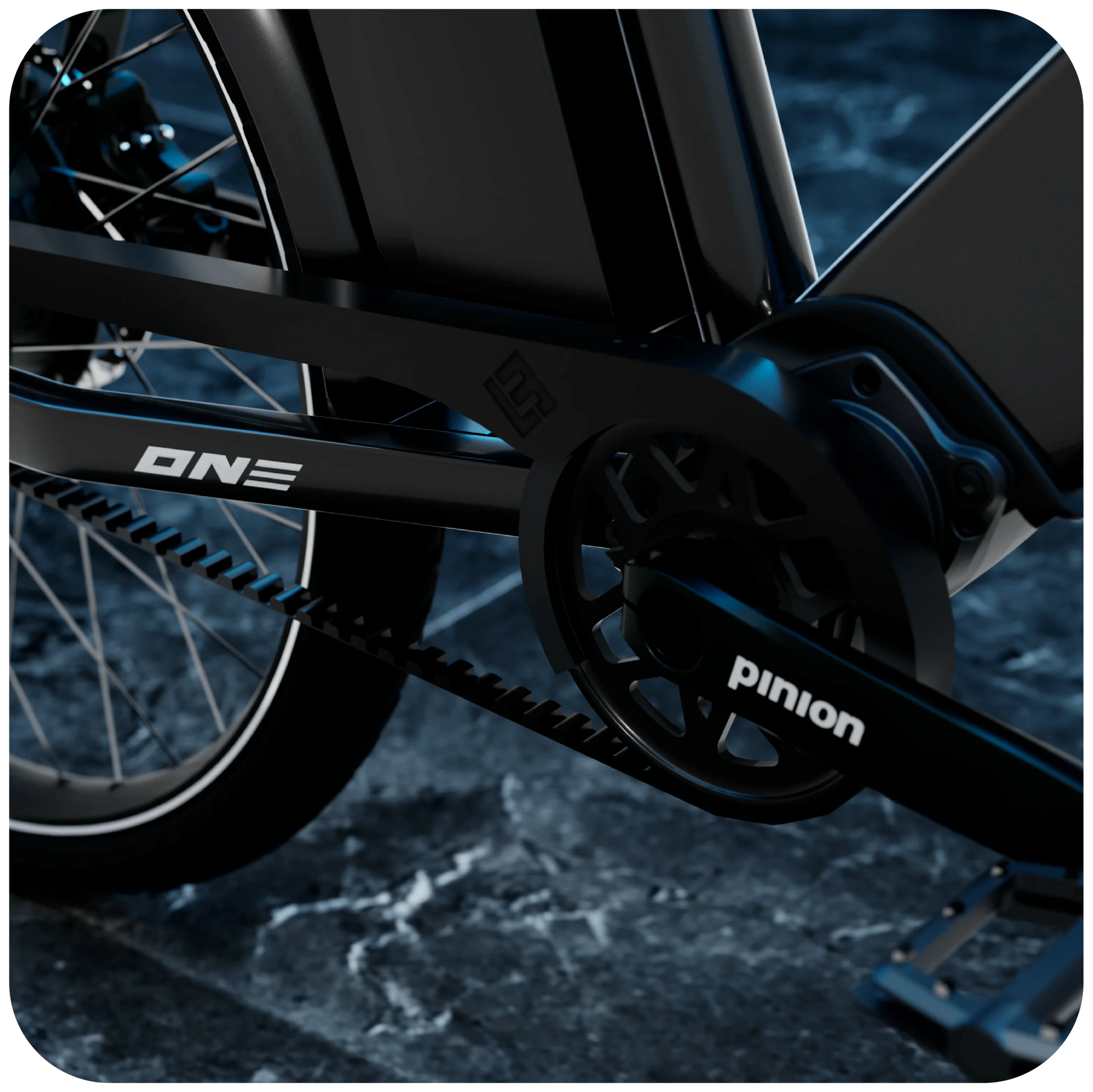

Belt Drive

Gates CDC 113-tooth Carbon Drive Belt System is lightweight and carbon fiber-reinforced. The belt’s performance is nearly maintenance-free while providing a chainless drivetrain that’s clean, quiet, smooth, and strong.

Gates Carbon Drive App

The Gates app is used to measure belt tension sonically. The belt can be plucked like a guitar string while the app uses the microphone on a mobile device to read the vibration frequency and compares it to a chart to determine if any adjustments are needed.

Belt Cogs

A Gates CDC 24-tooth steel rear belt cog is paired with an aluminum CDX 39-tooth front cog providing a ratio-optimized performance to accommodate a wide range of speeds.

Brakes

Hydraulic mineral oil brakes and 180mm rotors (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.

Lectric PWR™

Lectric's Pedal Assist Wattage Regulation (PWR) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting, instead of limiting the assistance by speed alone. Learn more about PWR here.

PAS Sensor

Lectric's PWR™ allows the rider to control the eBike's output with no additional effort so that a torque sensor is not necessary for smooth rides. Instead, the Lectric ONE has a simply designed and affordable cadence sensor with 96 magnets simulated so you can reach high speeds with ease.

Safety Lights

An integrated safety system, featuring a headlamp and a brake-activated taillight powered by the battery allows you to be seen at any time of day.

Charging

An external charging port provides riders with the option to charge the eBike without removing the battery. The Lectric ONE comes standard with a 2amp charger for 5-7 hour charging.

Telescoping Seat Post

An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.

Adjustable Handlebar Stem

Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.

Removable Pedals

Quick-release pedals easily detach from the bike for compact transport.

Lock-on Grips

Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.

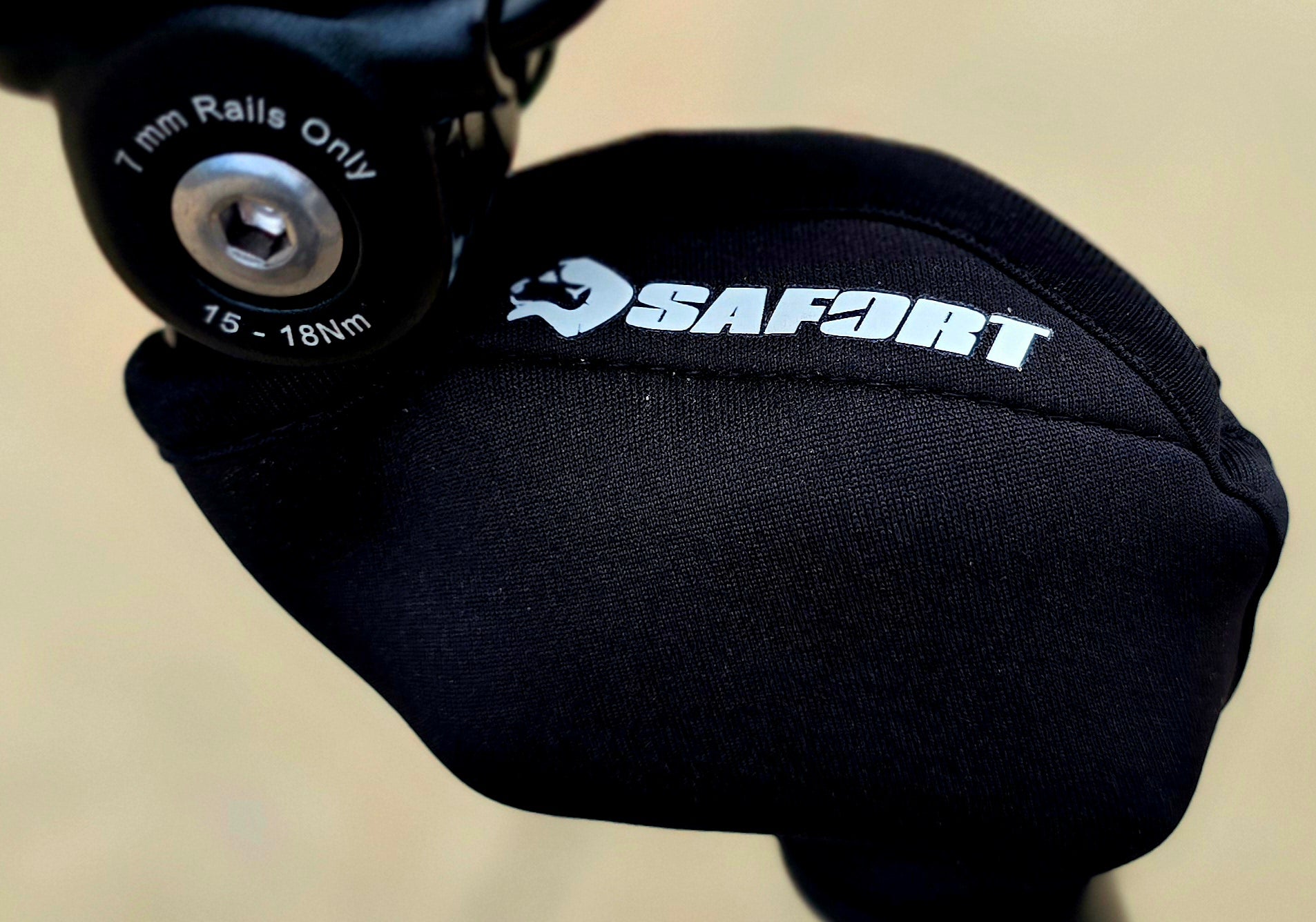

Saddle

A custom-designed saddle compliments a sportier look while adding comfort so you can ride longer.

Kickstand

A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.

Accessory Mounting Points

The frame features multiple mounting points throughout the eBike for various accessory combinations.

Hidden Cable Routing

The down tube of the frame houses the main cables for a premium experience at no extra cost.

Frame

6000-series-aluminum frame is sturdy yet lightweight. The chainstays feature vertical dropouts and specialty designed splits on each side for easy access to the belt drive.

Green Packaging

Packaging components are biodegradable and easily recyclable.

One Minute, Tool-Free Assembly

Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the thru axle.

Safety Certified

The Lectric ONE is certified to UL 2849. Additionally, the ONE's lithium-ion battery is certified to UL 2271.
