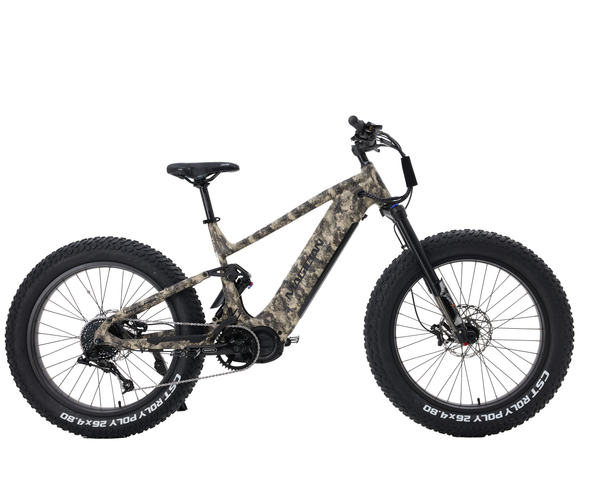

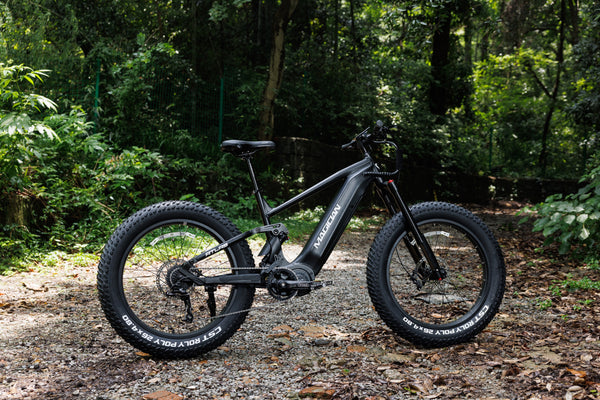

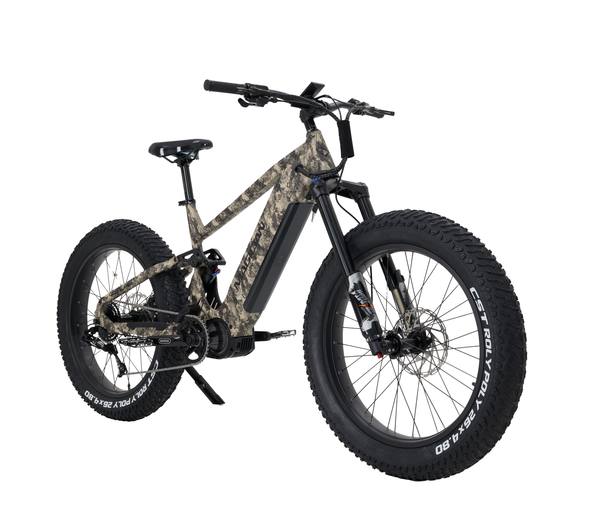

Magician Atlas E-Bike

$2,399.00 USD

Oferta Agotado

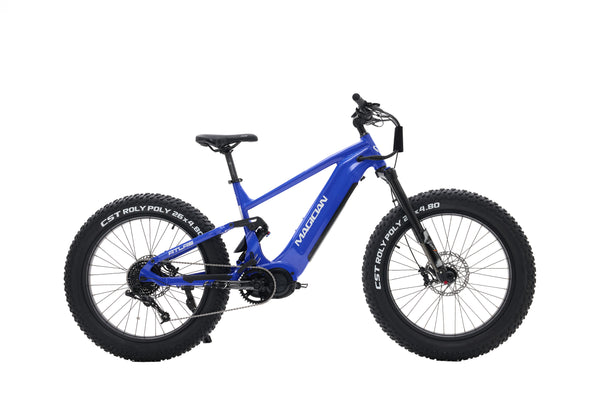

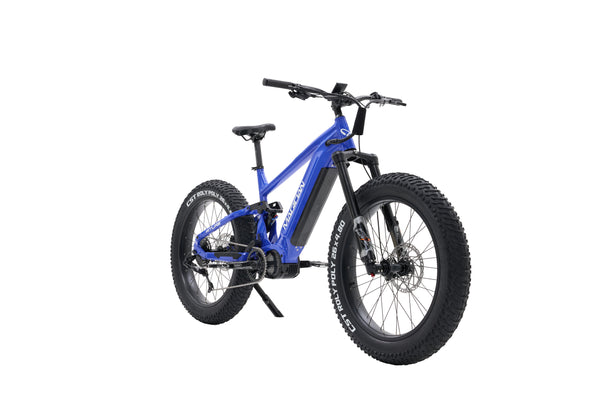

Color: Gloss Electric Blue

Frame Size 17" Inch 19" Inch

Cantidad

The Altas eBike is built for adventure, featuring a smooth full-suspension system and rugged "fat style" tires for unmatched comfort and control on any terrain and up to 45 miles (PAS 1), Whether you're conquering tough trails, tackling bumps or pushing your limits, the Altas delivers endless thrills. Toss it in the back of your truck, and once you reach your destination, ride the Altas to explore uncharted territories and embark on an exciting adventure.

This product is intended for off-road or private property use only. Users are responsible for complying with local laws and regulations.

ATLAS HIGHLIGHTS

TECHNICAL SPECIFICATIONS

Motor

Bafang G510 Mid Drive (52V 1000W, Peak 1500W), Max Torque: 160 N.M CANBUS SYSTEM

Battery

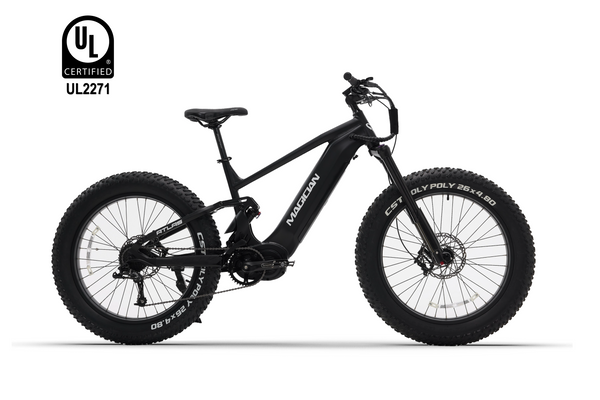

UL2271 certified-52V 20Ah SAMSUNG High-Power Cells, UL2271 Certified CANBUS SYSTEM

Charger

52V 3A Smart Charger, N/A Standard

Display

Bafang C010 LCD Display CANBUS SYSTEM

Throttle

Thumb throttle

Transmission

SRAM 11-40T 9 Speed Wide Range Cassette

Shift Sensor

Yes

Chain

KMC E9 EPT, 128 links with power link, 9 speed

Crankset

40T Narrow-Wide, 130BCD

Fork

KKE inverted fork, 150mm spacing, air suspesnion with lockout function, 34mm sanction, travel 140MM

Rear Shock

Rockshox Monarch RL 200*57mm, Air shock

Frame

6061 Aluminum Alloy Frame with Full Suspension design

Rims

Thickened double-layer aluminum alloy, rear 36H*13G, Front 36H*13G

Tire

CST 26x4.8, 60TPI ROLY POLY

Brakes

TEKTRO HD725 hydraulic brakes, 4-piston

Saddle

DDK wide & soft pro MTB style

Seat post

Promax 30.9*280mm

Seat post clamp

35mm

Handlebar

6061 Aluminum Alloy, Black, 780mm Width

Grips

Professional Mountain Bike Grips with Excellent Traction

Pedal

Professional Mountain Bike Pedals with Bearings

Weight

Total weight of bike with battery = 88lbs / Total weight of bike without battery = 74lbs

Recommended riding height

17inch-5'3''-6'1''

19 inch-higher than 5'11''

Frame Design

Progressive Leverage Ratio Curve: A linear suspension curve ensures sensitivity in the early stroke to absorb small bumps, while the mid-to-end stroke offers increasing firmness and strong support for aggressive terrain.

Optimized Anti-Rise & Anti-Squat Geometry: Designed to prevent the rear shock from compressing or extending under heavy pedaling torque or braking, maintaining ride stability and control.

Reinforced Rear Triangle with Dual Bearings: All pivot points in the rear triangle utilize complex dual-bearing structures to withstand intense lateral chain tension. Combined with a widened main pivot axle, this ensures minimal lateral flex even under extreme torque—delivering smooth, stable, and durable suspension performance.

Modern Trail Geometry: Shorter rear center (RC), longer front center (FC), and a slacker head tube angle offer superior handling and confidence across all terrains.

Components

Suspension: Equipped with a RockShox rear shock and a 140mm travel KKE inverted air fork—offering outstanding stiffness and multiple levels of adjustability for compression and rebound.

Braking System: TEKTRO hydraulic brakes with motor cut-off. Delivers linear and powerful braking with refined lever feel—easily controlled with just one finger.

Drivetrain & Powertrain: The powerful Bafang M620 mid-drive motor is paired with a SRAM drivetrain. The system enables effortless switching between high torque, high speed, or extended range by adjusting gear ratios.
